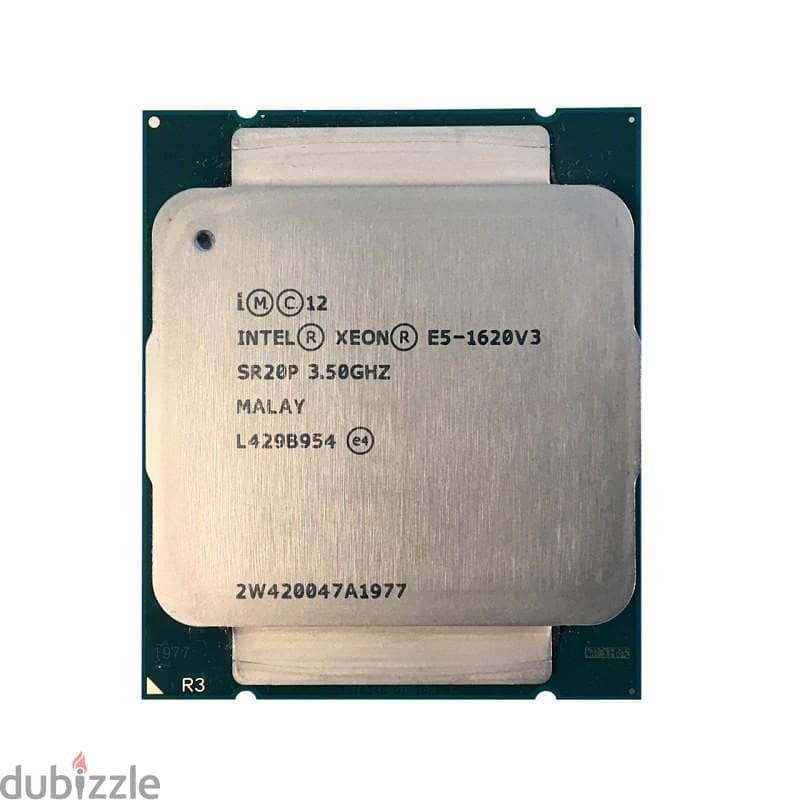

Xeon E5 1620 V3

Name: Xeon E5 1620 V3
SKU: 208078967

El Sahel, Shubra

1 day ago

Details

TypeProcessors (CPU)

Description

Product Collection Intel® Xeon® Processor E5 v3 Family Code Name Products formerly Haswell Vertical Segment Server Processor Number E5-1620V3 Lithography 22 nm Recommended Customer Price $294.00 CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 3.60 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.60 GHz Processor Base Frequency 3.50 GHz Cache 10 MB Intel® Smart Cache Bus Speed 0 GT/s # of QPI Links 0 TDP 140 W Supplemental Information Marketing Status Discontinued Launch Date Q3'14 Servicing Status End of Servicing Updates End of Servicing Updates Date Friday, December 31, 2021 Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1333/1600/1866/2133 Max # of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported ‡ Yes Expansion Options Scalability 1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ x4, x8, x16 Max # of PCI Express Lanes 40 Package Specifications Sockets Supported FCLGA2011 Max CPU Configuration 1 TCASE 66.2°C Package Size 52.5mm x 45.0 mm Advanced Technologies Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® Secure Key Yes Intel® AES New Instructions Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
