الوصف

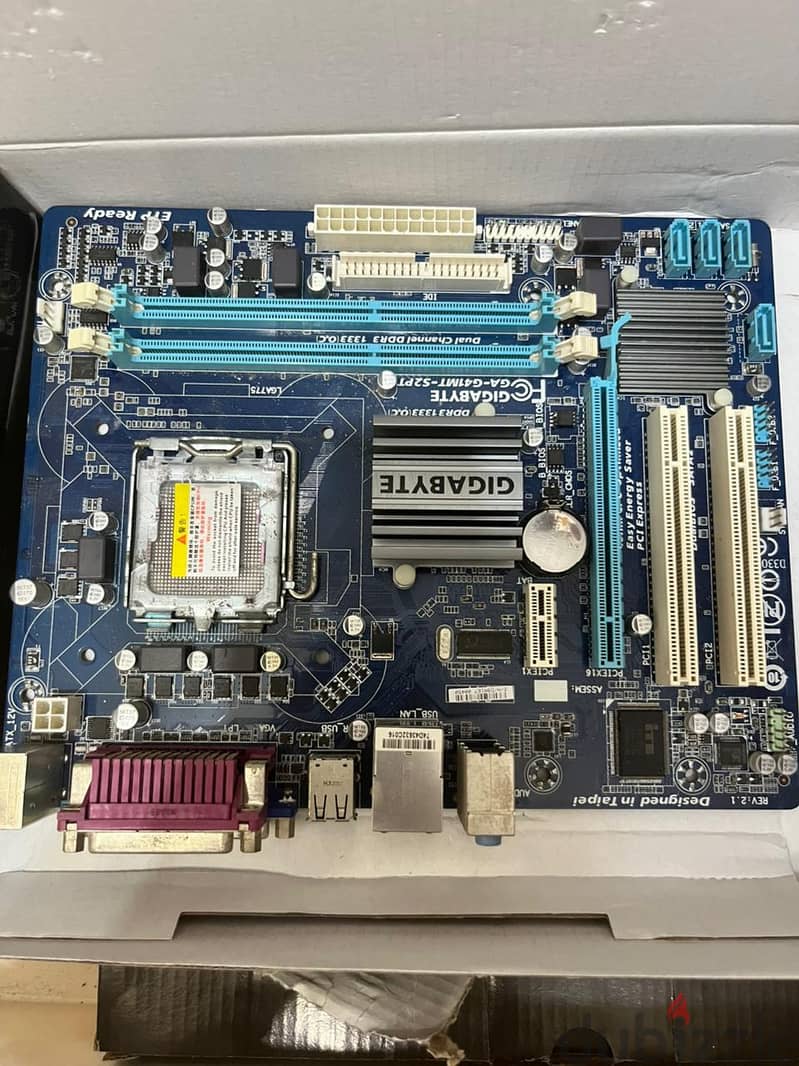

Key ComponentsCPU Socket: LGA 775 socket (with a protective silver cover and warning label) for Intel processors. RAM Slots: Two blue DDR3 DIMM slots supporting dual-channel memory. Expansion Slots:One blue PCI Express x16 slot for a graphics card. One small PCI Express x1 slot for expansion cards. Two white legacy PCI slots. Chipset & Cooling: Central aluminum Gigabyte heatsink covering the Northbridge/Southbridge controller. Storage Interfaces: Four black SATA connectors positioned near the bottom right of the heatsink. Power Connectors:24-pin ATX main power connector (long white block at the top). 4-pin ATX 12V CPU power connector (small white square at the far left edge). CMOS Battery: CR2032 coin-cell battery near the center right to retain BIOS settings. Rear I/O Ports (Edge):Parallel port (large pink port). Serial port (blue port below the pink one). VGA port (blue display connector). USB 2.0 ports and an RJ-45 Ethernet/LAN port. Audio jacks (pink, green, and blue).
