The Onkyo LS-B50 is a 2.1 channel soundbar system designed to significantly enhance TV audio with immersive sound. It consists of the LB401 soundbar and the SKW-B50 wireless subwoofer.
Here are the combined specifications for the Onkyo LS-B50 system:
Overall System Features:
* Panoramic 3D Sound with AuraSphere DSP: Onkyo's proprietary Digital Signal Processing technology optimizes driver output to create an expansive 3D soundfield from stereo sources, widening the "sweet spot" for a more immersive listening experience.
* 2.1 Channel Configuration: Provides stereo sound from the soundbar and deep bass from the separate wireless subwoofer.
* Dolby Digital Decoding: Supports Dolby Digital for high-quality audio from Blu-ray, DVD, and HDTV broadcasts.

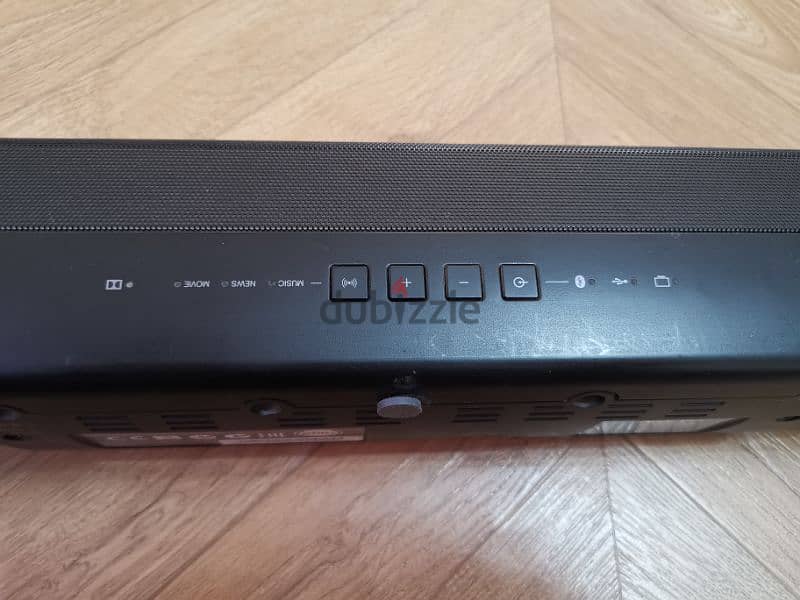

* Three Dedicated Sound Modes:
* Movie Mode: Optimizes EQ filters for movie and game soundtracks, enhancing bass and dialog clarity with a panoramic 3D soundfield.
* Music Mode: Manipulates EQ and sound pressure levels for balanced stereo music playback, expanding the soundfield.
* News Mode: Makes dialog more intelligible for TV programs and news, maintaining clean and balanced response.
* Bluetooth Wireless Audio Streaming: Version 2.1 + EDR, supporting the SBC codec, allows wireless music playback from compatible smartphones, tablets, and PCs.
* USB Playback: Plays MP3 files from flash memory devices via the USB port.

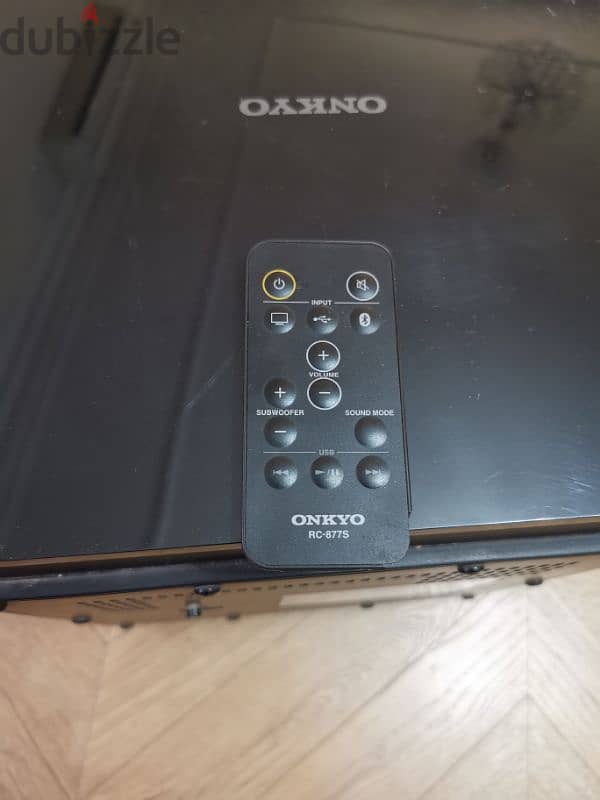

* Easy System Control with TV Remote: Can learn your TV remote's commands for auto power-on with the TV and volume control, simplifying operation.
* Convenient Single-Cable TV Connection: Offers optical, coaxial, and analog audio inputs for flexible TV connection.
* Wall-Mountable: The soundbar can be wall-mounted (template included, hardware typically not).
* IR Flasher: Included to extend your TV's infrared reception, useful if the soundbar blocks the TV's IR sensor.

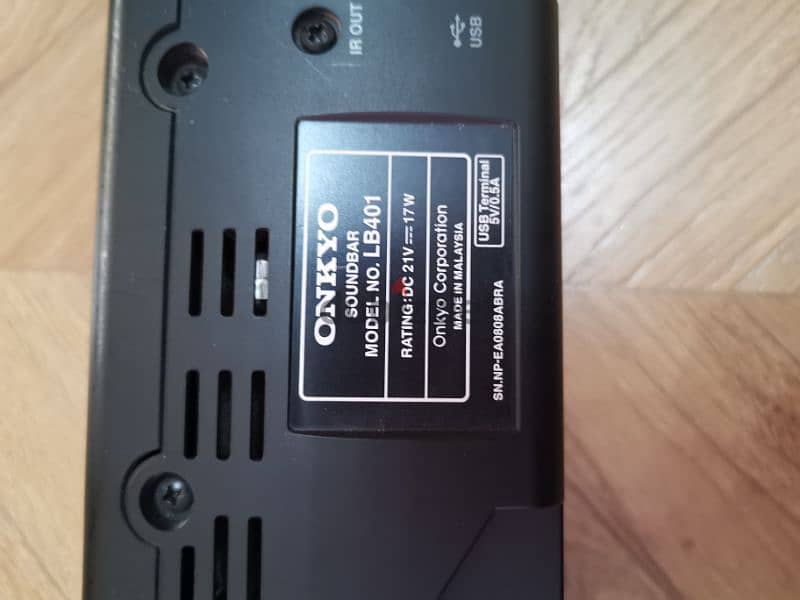

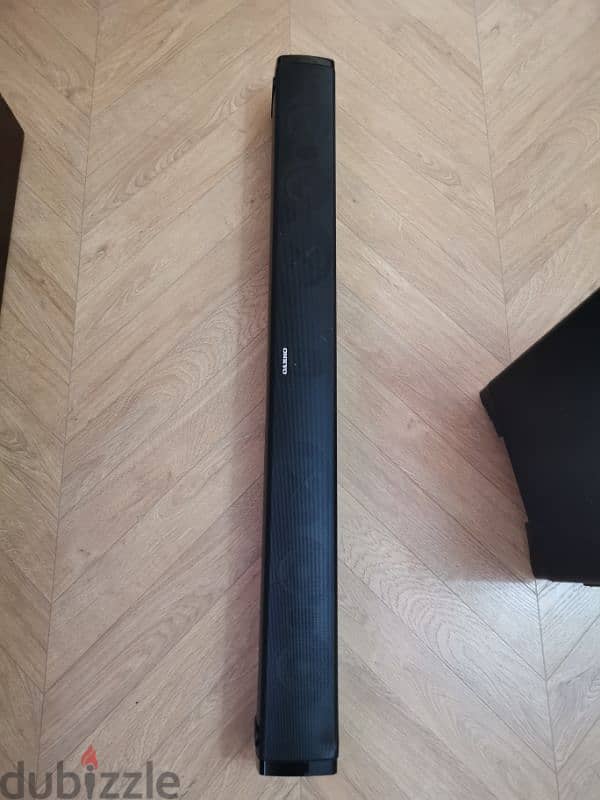

LB401 Soundbar (Main Unit) Specifications:
* Driver Units:
* Mid-Range: 6 x 2.75" (7 cm) Full-Range Cone Drivers
* Treble: 2 x 1.1875" (3 cm) Ring Tweeters
* Amplifier: Built-in 6-channel digital amplifier.
* Frequency Response: 120 Hz–20 kHz

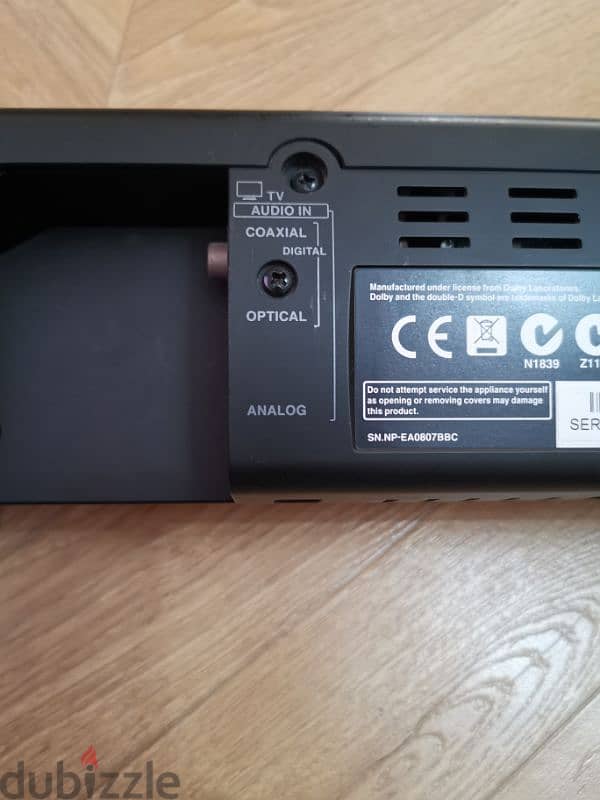

* Inputs:
* 2 x Digital Audio Inputs (1 x Optical, 1 x Coaxial)
* 1 x Analog Audio Input (3.5 mm / 1/8")
* 1 x USB Port (for MP3 playback)
* Power Consumption: 17 W (0.5 W in standby)
* Dimensions (W x H x D): 909 x 96.3 x 95.5 mm (35-1/2" W x 3-11/16" H x 3-5/8" D) (Height includes speaker stand)
* Weight: 3.9 kg (8.6 lbs)

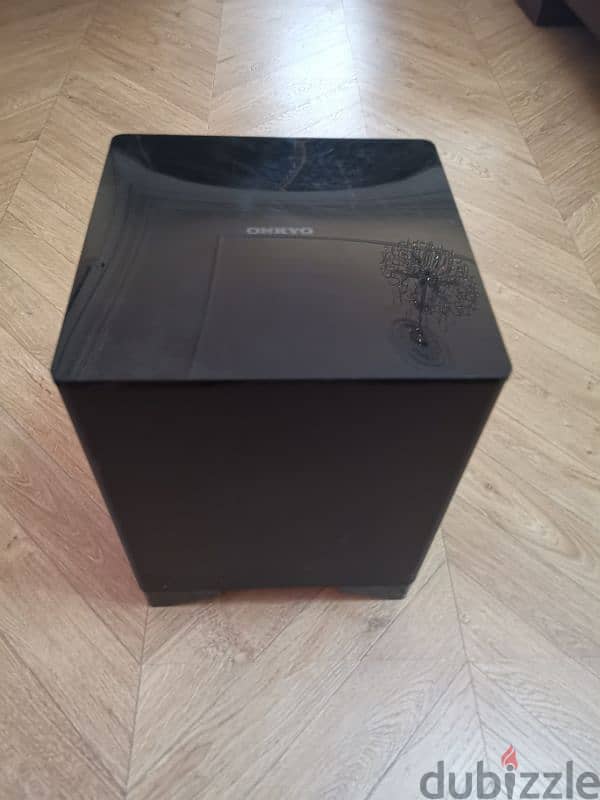

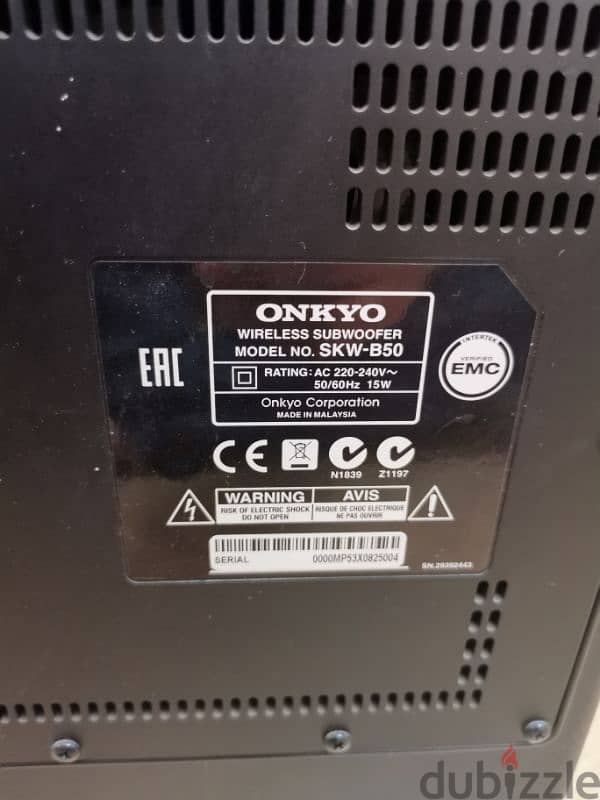

SKW-B50 Wireless Subwoofer Specifications:
* Speaker Type: Bass Reflex, Powered
* Driver: 6.5" (16 cm) Down-firing Cone
* Connectivity: Wireless connection to the soundbar.
* Frequency Response: 40 Hz−200 Hz
* Power Consumption: 15 W
* Dimensions (W x H x D): 261 x 337 x 269 mm (10-1/4" W x 13-3/16" H x 11-3/4" D)
* Weight: 5.8 kg (12.8 lbs)
The LS-B50 system was designed to be a significant upgrade over built-in TV speakers, offering clearer dialogue, more impactful bass, and a more enveloping sound experience in a compact and easy-to-set-up package.
